In a modern world, with assembly and manufacturing, little things are almost always the bearers of the largest charge. The nut is one of such unsung heroes, especially a custom nut, when it is created to suit certain non-standard technical demands, which the standard fasteners cannot cover. The clinch nut is one of the most popular and universally used custom nuts.
Custom nuts, such as clinch nuts, lie at the backbone of industries that require robust, vibration-free, and space-saving fasteners. They can be utilized to hold panels in aerospace structures, strengthen mount locations in automotive systems, or allow efficient ground connection in electronics; these nuts have a great deal of strength and simplicity in an easy-to-use package.
This detailed article delves into the significant role played by custom nuts in general and clinch nuts in particular, and why collaborating with the industry-leading clinch nut companies can enhance both performance, safety, and productivity by folds.
Custom nuts or fastening components are manufactured to suit non-standard applications, load conditions, or materials. Custom nuts can be individually specified in terms of size, thread pitch, material, coating, strength class, and even locking mechanism, whereas off-the-shelf nuts are the same.
They are used in an area where normal hardware cannot, e.g., they may have unusual structural or mechanical qualities like:
● Specialized geometrical shapes to cover a confined area
● The non-standard inside threading
● Combined locking or anti-vibration Design
● Extreme environments corrosion resistance
Custom nuts are required in both small electronic enclosures and massive infrastructure construction to guarantee secure connections under controlled conditions.

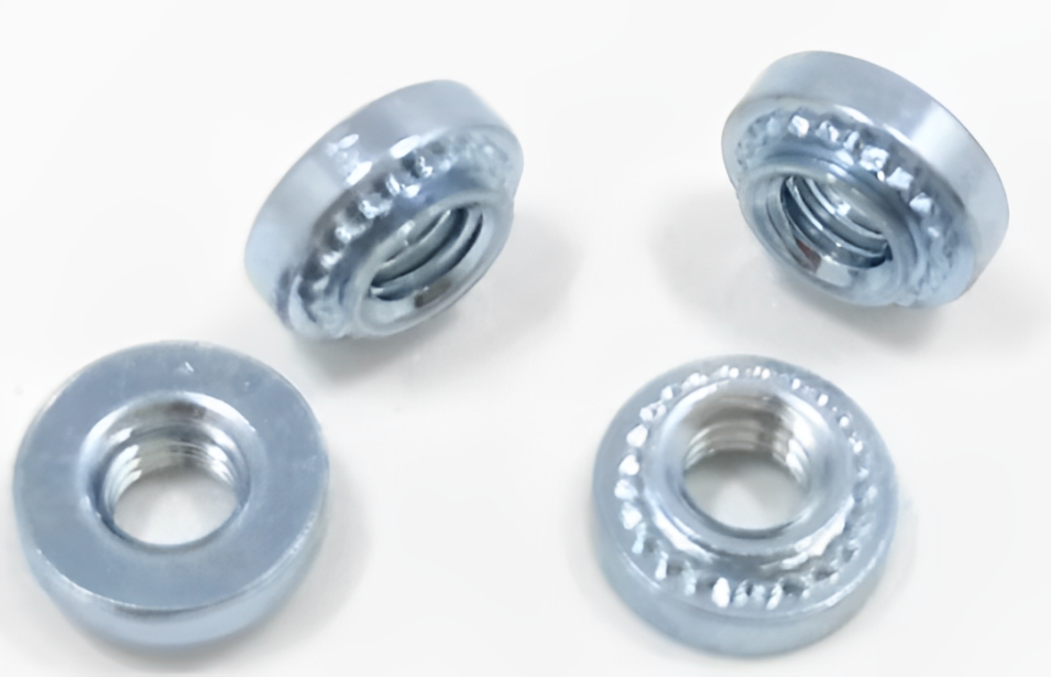

The clinch nut is perhaps one of the most commonly employed kinds of custom nuts used in the industry- they are also referred to as a press fit or self-clinching nut. These are nuts that are supposed to be forced into thin sheets of metal and softer materials to make threaded holes that are extremely strong and can be used again. So, the important Features of Clinch Nuts:
● Installed by pressing into a previously drilled hole
● Knurled or grooved against rotation
● Suitable in sheets of 0.5 mm to 3 mm of sheet metal
● No welding or hardwiring is necessary
● Offers clean flush installation
Clinch nuts may be pressed to be permanent, and thus the bolts or machine screws can be installed at high torque resistance and strength of pull-out.
Clinch nuts are pressed into metal sheets by a simple press force. When the nut is inserted in the hole, the knurled or undercut pattern pushes the material surrounding the nut out of the way, imprisoning the nut in the hole mechanically and frictionally.
This produces a flush, high-strength, threaded point of attachment that can be reused without compromising sheet metal life. Unlike other nuts, such as rivet nuts or weld nuts, clinch nuts do not need heat or thread tapping, an aspect that makes them compatible with fast, clean, and automated installations.
The following table gives us information about the suitable materials we can use to manufacture custom nuts and clinch
Material | Key Properties | Typical Use Cases |
Carbon Steel | Tensile strength: ~400–800 MPa; cost-effective; heat-treatable | General industrial, structural fastening |
SUS304 SS | Corrosion-resistant; tensile strength: ~500–750 MPa; non-magnetic | Medical, electronics, food processing |
Brass | Corrosion-resistant; electrical conductivity ~26% IACS; tensile: ~250 MPa | Electronics, decorative, light-duty |
Aluminum (6061) | Lightweight; tensile strength: ~250 MPa; excellent corrosion resistance | Aerospace, automotive, consumer products |
Titanium (Grade 5) | High strength (~900 MPa); lightweight; corrosion- & heat-resistant | Aerospace, medical implants |
Alloy Steel (4140) | Very high strength (~1000 MPa); excellent wear resistance after treatment | Automotive, heavy equipment |
Inconel 718 | Tensile strength: ~1100 MPa; temp resistance >700°C; oxidation/corrosion-proof | Aerospace engines, turbines, and extreme heat |
Clinch nuts are of various shapes and configurations depending on the material it is made of, the application, and the need for installation.

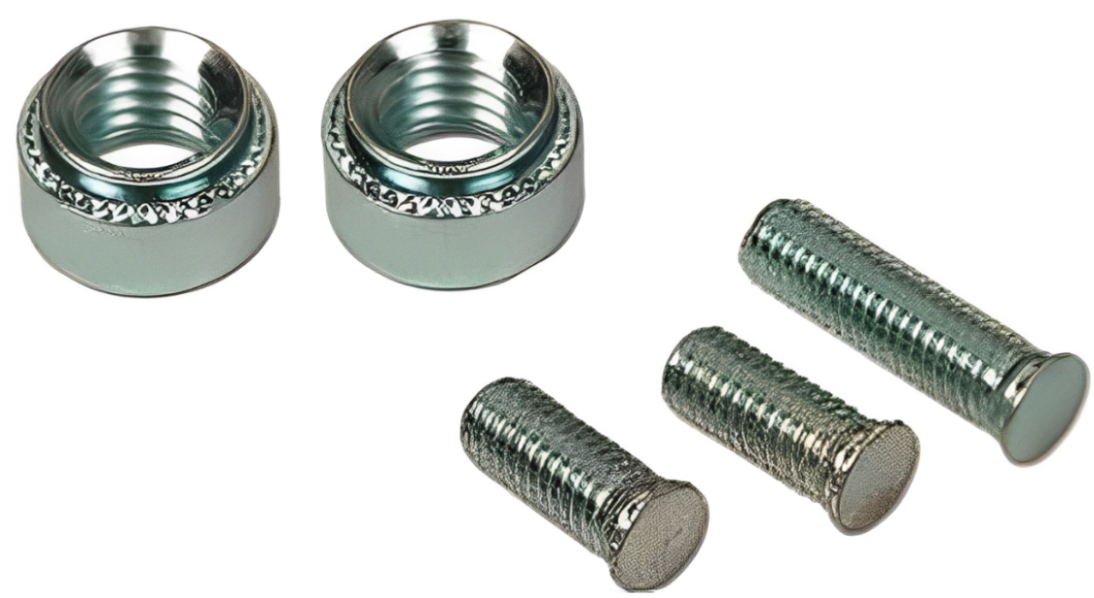

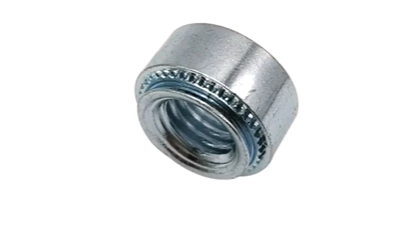

Commonly used are standard clinch nuts, which are intended to give strong but reusable threads in thin sheet metal, usually less than 0.8 mm thick. They are forced into holes already punched out, and they are knurls or undercuts that push aside the metal in the surrounding area, locking the nut firmly in place. They are perfect for general-purpose assemblies within enclosures, brackets, and housings when weld nuts or tapped holes are not practical.

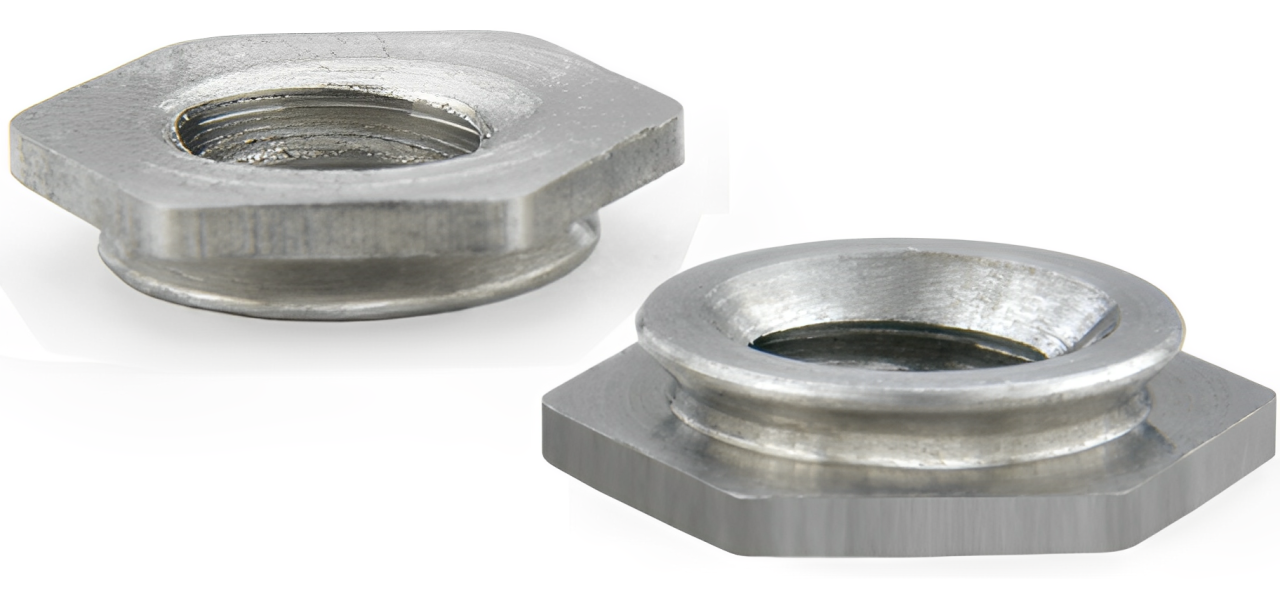

Flush clinch nuts are designed in such a way that they are placed at the same level as the material surface following installation to have an attractive, uninterrupted appearance. This also puts them in cosmetic use or places where space limitations require a level plane- consumer electronics, aerospace paneling, or interior automotive assembly. They also present high pull-out force as well as clean aesthetics and clearances on either side of the sheet.
Heavy-duty, bulky clinch nuts are used where there is greater sheet metal thickness or where high torque and a high load-bearing capacity are needed. They tend to be of high-strength material, and their knurls or locking mechanisms tend to be deeper to ensure they cannot rotate and they do not fail to stress. Examples of the applications are vehicle frames, industrial machinery, and structural supports.

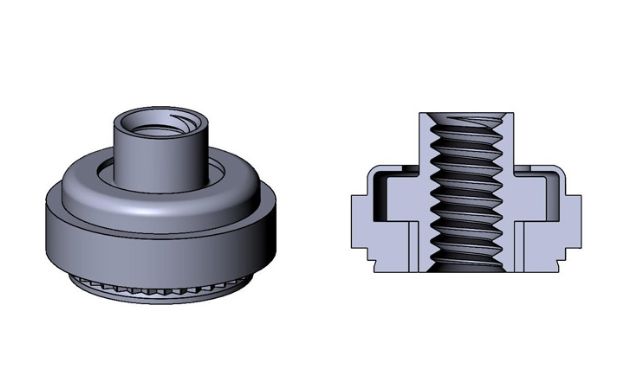

Floating clinch nuts provide some allowance of axial or radial float to allow some tolerance in assembly. This floating action lets bolts screw smoothly in, even when the hole is just a little bit off-center, which is useful in blind assembly methods or automatic manufacturing. Their applications are in electronics casings, chassis, and panels, where alignment is not ensured to be perfect.
Stainless steel clinch nuts are used when corrosion resistance is extremely important and may include marine, chemical processing, and medical fields. These nuts are manufactured out of stainless steels such as SUS304 or SUS316, which are strong and resilient despite being prone to moisture or chemical exposure and sterilization. They are perfect to allow long-term performance under sensitive or high-humidity conditions.
Clinch nuts have extensive applications in those industries where there is a possibility to rely on a sheet metal construction and where there is a necessity to have powerful and secure points of fastening.
Incorporated in the mounting of panels, electronic modules, brackets, and heat shields, providing a thin, weld-free option.
Chosen due to strength-weight ratio, vibration immunity, and clean looks in the aircraft interior and systems.
Facilitate assembly of enclosures, heat sinks, and printed circuit board assembly, particularly where soldering is undesirable.
Applied as metal framing, duct system, and enclosure of mechanical systems in case of restricted access.
Tighten hygienically, with super precision, the ability to sterilize and prevent corrosion in a sensitive environment.
In consumer electronics and appliances, a more common example of where clinch nuts are entering is where form, functionality, and cost-effectiveness meet.

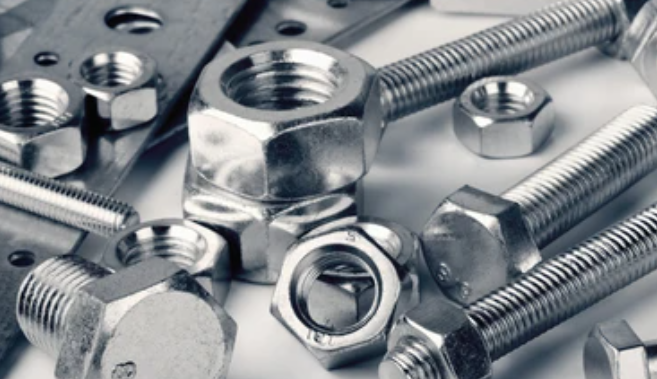

Why not simply use normal hex nuts and bolts? There are several problems that can be overcome using clinch nuts, which cannot be resolved with traditional fasteners.
1. Space Optimization: Cinch nuts are mounted either into the material so that the mounting is flush on one hand or nearly flush on the other hand, so that projections are not necessary and designs can be compact.
2. Saving in Time and Labor: No welding or threading because they can be installed in a single press stroke.
3. Good Load Distributions: They spread the load over their base material, as these nuts minimise cracking, distortion, or stress concentration.
4. Vibration Resistance: Their safe mechanical lock could not easily be loosened in moving or vibrating conditions.
5. Aesthetic and Functional Cleanliness: No stick-out features or welding indicators, fantastic with any assembly that needs to have complete interiors or slick surfaces.
Every clinch nut is not the same. Standard clinch nuts do not always fit particular requirements of strength, surface finish, or that can be used with materials such as exotics.
This is where custom clinch nuts come into the picture.
Examples of customization:
1. Raw materials with non-standard outer diameter or type of threads
2. Corrosive or conductivity protection coating, Special material, Corrosion or conductivity, Special materials, Paint electrode, metal, or wood
3. Adjustment of the profiles of assembly lines that are automated
4. Thread locking compounds pre-applied
5. Custom labeling or part numbers\
Custom nuts address particular engineering conditions, minimize assembly errors, and improve manufacturing, which in turn converts to product performance improvement and reduced lifecycle costs.
Being one of the largest clinch nut manufacturers, Maijin Metal provides complete custom solutions for fasteners with top precision machined by a CNC machine and engineering assistance. What is so Special about Maijin?
1. Custom Designed: Nuts produced to your own specifications, threads, material, hardness, and finish.
2. High CNC Ability: Allows us to machine with great precision, and into hard-to-machine shapes, guaranteeing an ideal fit and the same dimensions.
3. Material Versatility: Experienced with stainless steel, brass, aluminum, titanium, and Inconel.
4. Quality Assurance: ISO 9001: 2015 certified manufacturing with rigorous testing of dimensions, hardness, and material.
5. Quick reaction: suitable for prototyping, short-run production, and rushed production.
In the case of safety-critical components, quality is not negotiable. Maijin Metal uses a stringent inspection mechanism at all levels:
● Incoming Material Verification
● Micrometers and CMM dimensional Tolerance Inspection
● Thread Test pics of pitch, depth, and concentricity
● Pull-Out and Torque Testing
● Salt Spray and Corrosion Testing of Coated Parts
This testing has made it such that every custom clinch nut will be passed with either industry standards of mechanical integrity and ascertainability, or even beyond.
So, let's discuss some of the tips we can follow to install clinch nuts effectively.
1. Never use custom-cut holes of different diameters
2. Do not use hammers; apply force evenly with a press
3. Make sure that the base material is as thick as possible
4. Orientation must be checked; the nuts to be clinched are directional
5. Install torque-limited drivers, which make stripping of threads unlikely after the installation process
A lot of clinch nut manufacturing companies, including Maijin, provide press-fit instructions and technical advice along with the orders.
The increased need for compact, lightweight designs that require fewer parts and a faster assembly, along with expediency in industries, will continue to increase the role of custom fasteners such as clinch nuts. The demand for compact, strong fasteners is encouraged by trends like the use of electric vehicles, the development of 5G infrastructure, and the miniaturization of medical equipment.
Custom nuts are also contributing to sustainability, in the form of allowing re-usable assemblies, removal of welding, and design to be lighter in weight.
Custom nuts and more precisely the clinch nuts are much more than simple threaded parts; they are tactical details of designing that enhance structural stability, efficiency, and usability of the product. Proper selection of a clinch nut based on your application can save cost, enhance reliability, and make production faster.
No matter what type of clinch nut you require, an aerospace locking nut or a flush-mounted clinch nut for an electronics enclosure, associating with experienced clinch nut suppliers such as Maijin Metal will help you design a fastening solution that will work.
1. How thin can a sheet be when clinch nuts have to be installed?
Depending on the type and material, most clinch nuts can be installed only in sheets as thin as 0.8 mm.
2. Are clinch nuts applicable to plastic or composite material?
Normally, clinch nuts are metal-based. For plastic, threaded inserts or heat–set inserts are much better suited.
3. What is the difference between a clinch nut and a weld nut?
A clinch nut is pressed in mechanically, whereas a weld nut is fused to the base by use of heat. The clinch nut is neater and automated-friendly.
4. Are custom clinch nuts more expensive than standard nuts?
There is a cost, upfront, yes, but they save a lot of money in the long run due to the time it takes to install, the reliability, and the lack of costly design workarounds.
5. Does Maijin Metal deal with small batch orders on custom nuts?
Yes, Maijin can assist you with prototypes and small-batch manufacturing without the need for a mold, with a small turnaround time.
