A recent development in the accelerated manufacturing industry dynamism is the rise of the need to have small-batched aluminum turned parts of high precision. It comes in any size (prototypes, RR&D assignments, small-scale productions), but the engineers and purchasing managers always have the same urgent question:
“How much does CNC Machining Cost for Small Batch Aluminum Turned Parts?”
Knowing the cost determinants of aluminum CNC turning right enables you to make informed decisions, budgets, and identify reliable suppliers who would provide quality as well as efficiency. This article will discuss all aspects that affect small-batch CNC aluminum parts. Besides this, it will tell you how an outsourcing professional like Maijin Metal can guarantees value through all the stages.

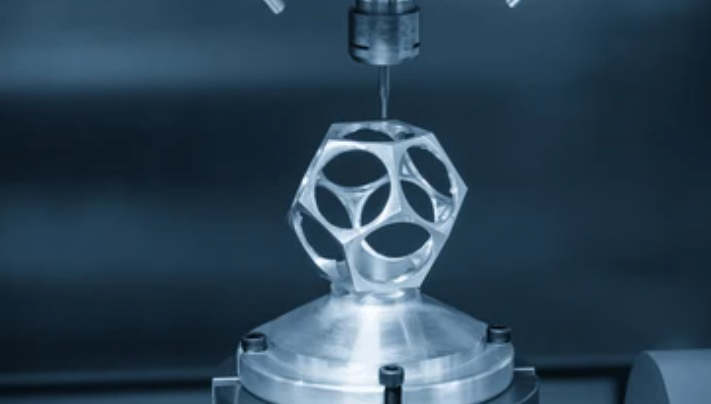

CNC turning, also known as high precision machining, is a machining procedure in which a cutting tool is used to cut material off of a rotating rod of aluminum to produce items cylindrically or roundly shaped. It provides tight tolerances, smooth finishes to surfaces, and repeatability, which is ideal in a part like a shaft, a bushing, a spacer, or a connector.
Aluminum is still a material of choice in CNC turning because it has:
● Light but sturdy structure.
● Excellent machinability
● Corrosion resistance
● Thermal and electrical conductivity.
● Affordable material price
These characteristics make aluminum appropriate in the automotive, aerospace, medical devices, and electronics industries where small, complex, and exact turned parts are vital.

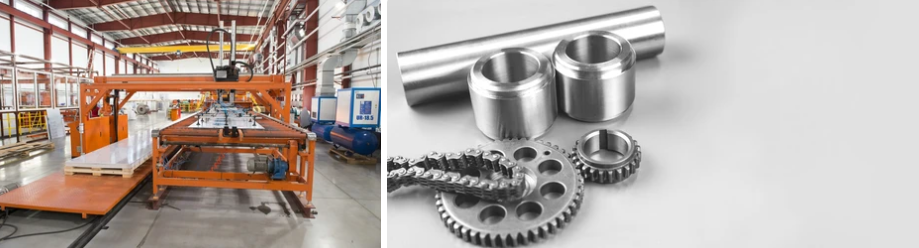

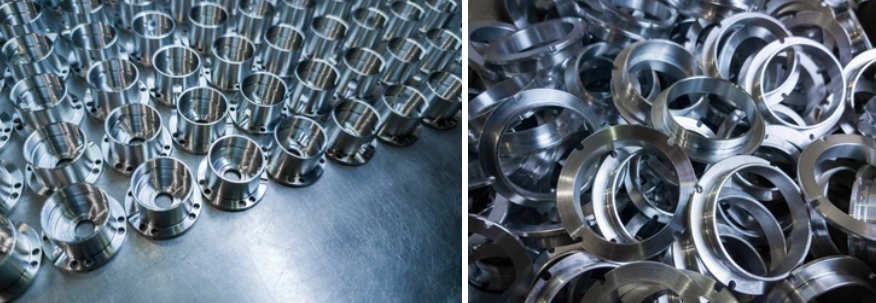

Small-batch CNC machining makes the ideal concession between accuracy and flexibility. They are suitable for startups, research and development teams, and specialized manufacturers. However, the major advantages of small batch production (usually tens to a few hundred parts) are:
● Flexibility: Suitable when the design is to be validated with the prototype and then mass-produced.
● Quick turnaround: Easier to plan than large-volume runs.
● Cost control: Does not demand large initial payments on tooling or molds.
● Customization: Permits design changes and small run changes.
CNC machining small quantities is not a fixed price - it varies across several interdependent factors. These will, in turn, help you structure your project effectively and select the appropriate supplier.
Various grades of aluminum differ in terms of price, machinability, and mechanical properties. The most frequently used aluminum alloys in CNC turning are 6061, 7075 and 2024, 5052, and 6082. Here are some of their properties and applications;
Aluminum Alloy | Material Cost ($/kg) | Machinability | Tensile Strength (MPa) | Corrosion Resistance | Typical Applications |
6061-T6 | Moderate | Excellent | 310 | High | Automotive parts, brackets, frames |
7075-T6 | High | Good | 570 | Moderate | Aerospace fittings, gears, and shafts |
2024-T4 | Moderate | Fair | 470 | Moderate | Aircraft structures, couplings |
5052-H32 | Low | Excellent | 220 | Very High | Marine components, enclosures |
6082-T6 | Moderate | Excellent | 340 | High | Structural components, tooling |
Complex geometries are more time-consuming and require increased tool changes. Internal grooves or undercuts, or tight-fit parts will require more setups, inspection, and, in cases, custom tooling, which adds cost.
● Basic geometry: $2-5 per unit (smaller runs)
● Good complexity: $5 to 15 per part.
● High accuracy/high complexity: $20-50 or more per part.
The less sophisticated and complicated your design, the more cost-effective the production.
CNC machining includes setup time, CNC machine programming, tool installation, and preparing of fixture preparation. This arrangement with small batches dilutes across less number of units, increasing the price on a per part basis.
Batch Size | Setup Cost Impact | Estimated Cost per Part (Aluminum 6061) |
10 pieces | Very High | $25–$40 |
50 pieces | Moderate | $10–$20 |
100 pieces | Low | $5–$10 |
500+ pieces | Very Low | $2–$5 |
Close tolerances (< +-0.01 mm) and mirror-like finishes need more passes, reduced cutting speed, and post-processing, like polishing or anodizing.
● Normal tolerance (+-0.05 mm): No additional charge.
● Tight tolerance (+-0.01 mm): +10-20% cost
● High surface finish (Ra < 0.8 µm): +15-25% cost
In case you do not require aerospace-level accuracy, you can save a lot by using standard tolerances.
Machine time has a direct effect on cost. The more operations and setups needed on a part, the more the machining hours. Even though labor is regional, CNC machining in China is typically 30-50% cheaper than in North America or Europe.
In small batches, the non-standard fixtures or special tools to cut are often required to be precise. This is a fixed tooling charge of between 50 and 300 dollars, depending on the complexity of parts.
Aluminum turned parts can be subjected to:
● Anodizing (clear, color, hard): $0.50-3.00 each.
● Powder coating: $1-$5 per piece
● Blasting/polishing of beads: $0.20- 1.00 per unit.
● Laser marking: $0.10-$0.50 per piece
Use only necessary finishes on prototypes or internal parts to optimize your total cost.
A carrier of modern multi-axis CNC turning centers can also be a professional supplier whose production is more efficient, as it saves time and waste in machining.
Collaboration with a Chinese precision machining firm, such as Maijin Metal, gives you:
● Economic pricing is a result of efficient production.
● Internal finishing and testing.
● Short lead times (5-10 days average on small batches)
● Design and cost minimization regulations.
Here is a small example to rough estimate the CNC turning cost for small batch aluminum parts;
● Material: Aluminum 6061-T6
● Part type: Connector housing
● Quantity: 50 pcs
● Tolerance: ±0.05 mm
● Finish: Anodized
● Lead time: 7 days
Cost Component | Estimated Cost (USD) |
Material | $25 |
Machining Time | $200 |
Setup and Programming | $80 |
Post-Processing | $40 |
Inspection and Packaging | $20 |
Total (50 pcs) | $365 |
Cost per Part | $7.30 |
Costs in machining can be cut, but it does not imply that there have to be compromises in precision or quality. It is possible to be very high-performance and contain the costs with some clever choices in the design and production stages.
Make part geometry simple and do not use excessive tolerances or features. Less complex designs minimise tool-paths, setup time, and machining hours-producing faster and more dependable designs.
When using alloys, make sure that you use alloys such as 6061 or 5052 aluminum rather than alloys such as 7075. These are alloys offering great machinability and lasting durability, and minimizing the costs of materials and tools.
The setup cost is a predetermined cost that can be incurred when you have a quantity of 10 pieces or 50 pieces of parts; the per-part cost can vary significantly. Even a modest increase in volume will allow the distribution of programming and setup time over a greater number of units.
Using the same supplier in both CNC turning and finishing reduces logistics, coordination, and quality differences. It also helps in enhancing lead times and provides identical results in surface treatment.
Get your supplier involved early to streamline part designs to be machined effectively. Working in cooperation with Maijin Metal.
Guarantees you design quality feedback that saves you time and costs incurred in later rework.

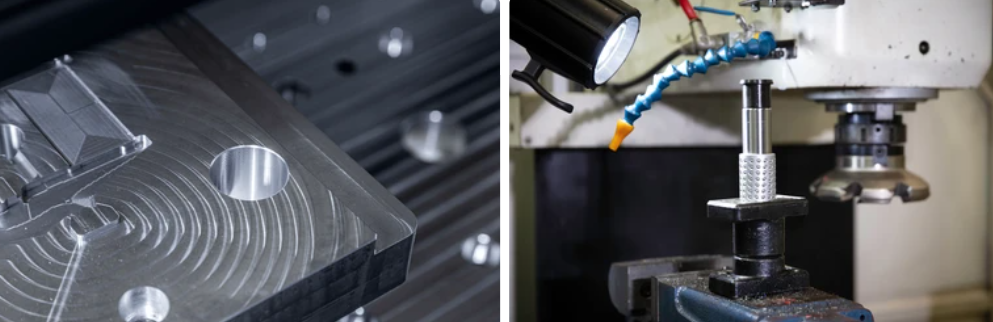

Maijin Metal focuses on low to medium-volume turnings of precision aluminum CNC. Flexibility, quality, and precision, as well as cost optimisation, make us a reliable partner among the world's clients. We consider as the best in different industries, including the automotive industry, the electronics, robotics, and aerospace industries.
Our Strengths:
● High-tech multi-axis turning centers.
● Quality control based on ISO 9001:2015.
● A similar change in Prototo production.
● Large inventory of alloys of aluminum (6061, 7075, 5052, 6082)
● Internal surface treatment (anodizing, polishing, coating)
● Clear and competitive pricing and 24-hour quotations.
You may need 10 parts to be tested or 500 pieces for pilot production. Our quality, precision, and delivery are always reliable and timely.
CNC machining cost for small batch aluminum turned parts is determined by the cost of the material, machine usage, quantity, complexity of the design, and efficiency of the supplier. Due to these factors, you will be better able to plan your budget and to get high-quality components at an affordable price.
In the event of cooperating with a mature supplier such as Maijin Metal.
You obtain, in addition to machining, not only machining--but on a full service basis--for example, including design feedback, precision engineering, and cost optimization to your small-focus requirements.
What is the minimum order quantity (MOQ) of aluminum CNC turned parts?
At Maijin Metal, we can assist with low-volume production of at least 10 pieces, which is best for a prototype or small-scale testing.
What is the delivery time of small batch aluminum?
Normally, lead time is 5-10 business days based on the complexity of their parts and the finishing specifications.
What type of aluminum is the most cost-effective to work with?
Most applications have Aluminum 6061-T6 as the best of cost, machinability, and mechanical performance.
Does it include post-finishing and assembly?
Yes, we can do the turnkey solutions such as anodising, laser marking, and sub-assembly, all inclusive of the quoted price.
Am I able to obtain a free cost estimate before taking an order?
Absolutely! You only need to post your drawings or 3D models on our contact form on our website. Then get a free quote within 24 hours.
