Bolts are fundamental mechanical parts that have been applied in industries such as construction, automotive, aerospace, and electronics, among others. You could think their purpose is straightforward: to join parts together, but in reality, they are essential components to structural integrity, safety, and reliability. This guide covers the fabrication of fastener bolts and the factors that include quality, materials, tolerances, strength, the process by which it is manufactured, and tests. Having a background knowledge of bolt fastener producers, more so the Maijin Metal bolt line, you will know the difference between the better bolts.

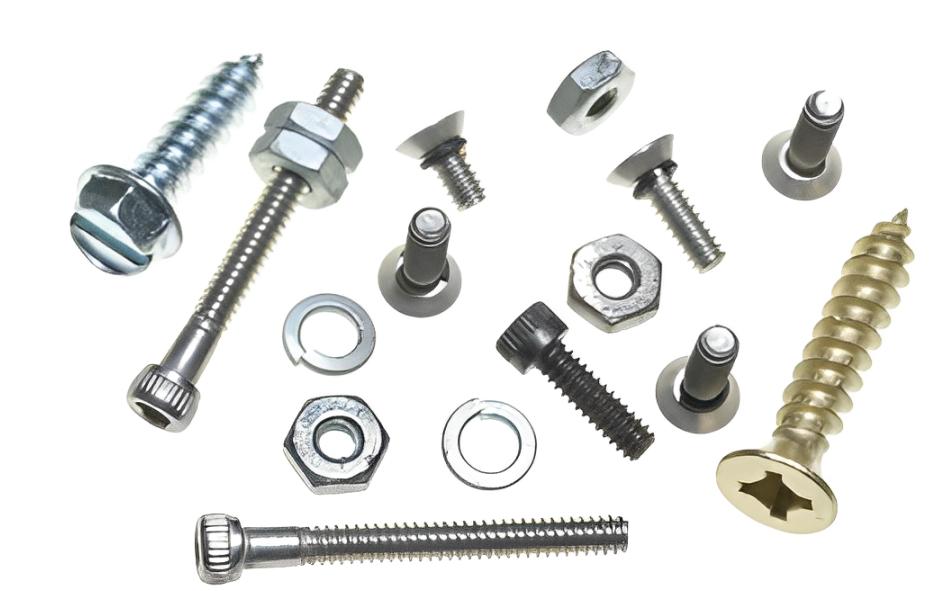

A bolt is a threaded mechanical device to connect two or more components, usually with the aid of a nut. Bolts, in general contrast to screws, are not tapered and are so constructed as to fit through unthreaded holes in assembled parts. Because they are strong and reusable, they find a very wide application in machinery, structural, and automotive systems. Bolt fasteners always have diversity in design, material, and coating, and all this depends on the assembly requirement, loading requirements, as well as the environment.

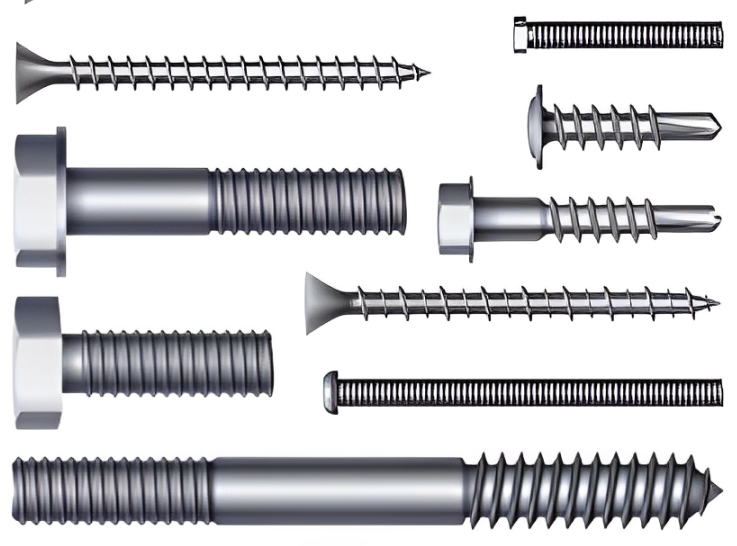

When the bolt breaks, it can be disastrous: structural collapse, breakdown of machinery, product recall, or safety issues. Therefore, good quality bolt production is not only a standard but an essentiality. High-quality bolts:
1. Make sure structural safety with dynamic or static loads.
2. Avert fatigue in cyclic stress situations.
3. Provide transparency, which means not permitting the assembly to be variable.
4. Do away with any rework and repair at a high expense.
The companies that make bolt fasteners need to meet these standards of quality by engineering, controlling processes, and testing.
Tolerances are differences or variations in the dimensions of bolts permitted that may have a strong effect on their fit, assembly, and capacity to hold a load. There are some important kinds of tolerances:
1. Dimensional tolerances: The diameter, length, and head size should be within narrow limits (e.g, +0.05mm -0.05mm); this is especially important in aerospace or medical grade bolts.
2. Thread tolerances: Such dimensions as ISO (The International Organization of Standardization) or ANSI (American National Standards Institute) specify how tight or loose the threads of a bolt must be to properly engage and transfer torque.
3. Geometrical tolerances: The ability to maintain thread pitch and thread alignment to make the load uniform.
4. Tolerance classes: Similar to 6g or 8g, these are the standards of the precision of threads.
The CNC machineries and laser-guided inspection systems used by the fastener manufacturing companies in top bolt manufacturing help them attain and measure these tolerances.
The choice of a material is important for strength, durability, and performance. Every application requires certain mechanical properties:
Material | Tensile Strength (MPa) | Key Properties | Typical Applications |
Carbon Steel (Grade 8, 10.9) | 800–1,040 MPa | Strong, economical, good machinability | General industrial, construction, automotive |
Stainless Steel (A2/A4) | 500–900 MPa | Corrosion-resistant, hygienic, aesthetically clean | Marine, food processing, and medical equipment |
Alloy Steel (Grade 12.9) | 1,200+ MPa | High tensile strength, heat-treatable, wear-resistant | Heavy machinery, high-load automotive parts |
Titanium | ~900 MPa | Lightweight, corrosion-resistant, biocompatible | Aerospace, medical implants, high-performance gear |
Brass / Aluminum | 250–500 MPa | Lightweight, corrosion-resistant, easy to machine | Electronics, decorative fixtures, light-duty parts |

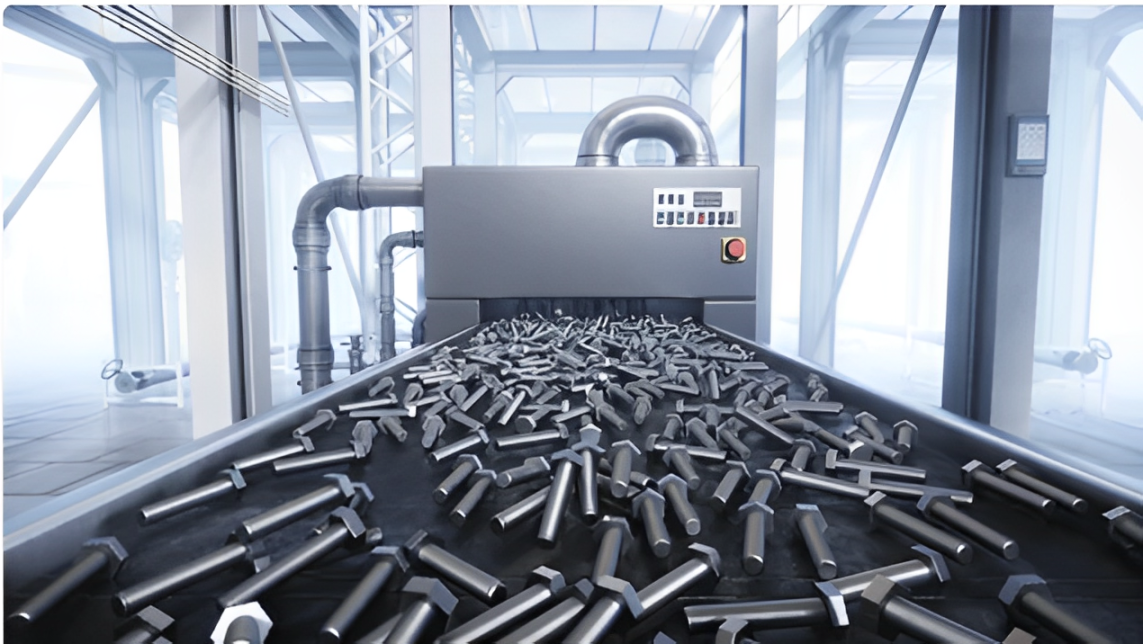

A bolt is produced using several mechanical processes that all require a lot of precision. So here is a step-by-step breakdown:
It starts with the preparation of stock-round bar and selection of materials, i.e., carbon steel, alloy steel, stainless steel, or titanium. These raw bars are examined with regard to surface flaws, straightness, and right diameter, and these are then cut into quantities that can be handled. Material grade and consistency will have a direct impact on mechanical performance and the machine's ability to produce the final bolt.
Here, the cold heading or warm forging is used to make the head of the bolt. Cold heading is performed at a room temperature and is most often applied to smaller bolts since it strengthens and work hardens metal and does not disrupt grain flow in the metal. The larger or more complex heads are made by warm forging. This is done without actually removing material, and this enhances structural integrity and efficiency of production.
Instead of using cutting, modern bolt manufacture employs thread rolling, by pressing dies on the bolt shank to form the threads. The technique densifies the material, enhancing the surface hardness and fatigue resistance. Rolled threads are also superior to cut threads since they are smoother and stronger and can fit in a critical-load or high-performance application.
After the creation of the head and threads, bolts are cut to a desired length in high-speed cutting machines. Such assembly may require the tip of the bolt to be chamfered or pointed so as to allow easier insertion. This will provide dimensional accuracy, particularly when there is a high tolerance application or automotive fastening component.
There are bolt designs that need other attributes that can only be achieved through forming. Machining Flanges, shoulders, slots, or cross-drilled holes may also be performed using CNC lathes or CNC mills as secondary machining. The process gives versatility to fabricate either custom or non-standard bolt geometries according to application requirements.
This last step also makes sure that the bolts are harmless to hold and operate as well. Deburring operations are used to generate a smooth finish after roughening and any burr created during the previous operations, whereas cleaning is used to remove oil, scale, or surface contaminants. Depending on the material, polishing or tumbling can be used. This process improves the quality of the surface as well as pre-processes the bolt before it can be subjected to any finish or coating.

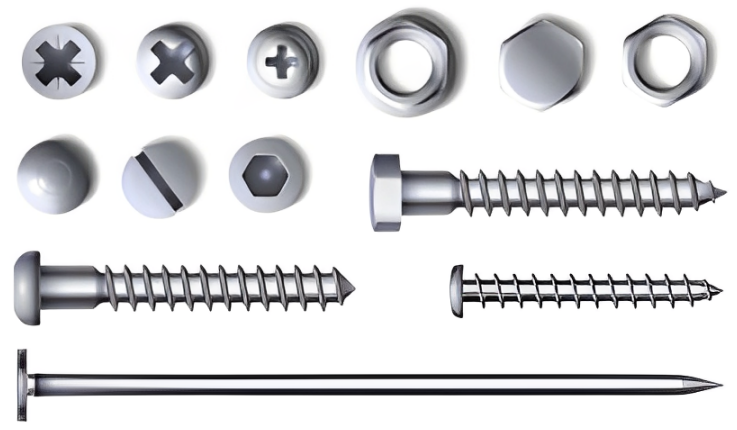

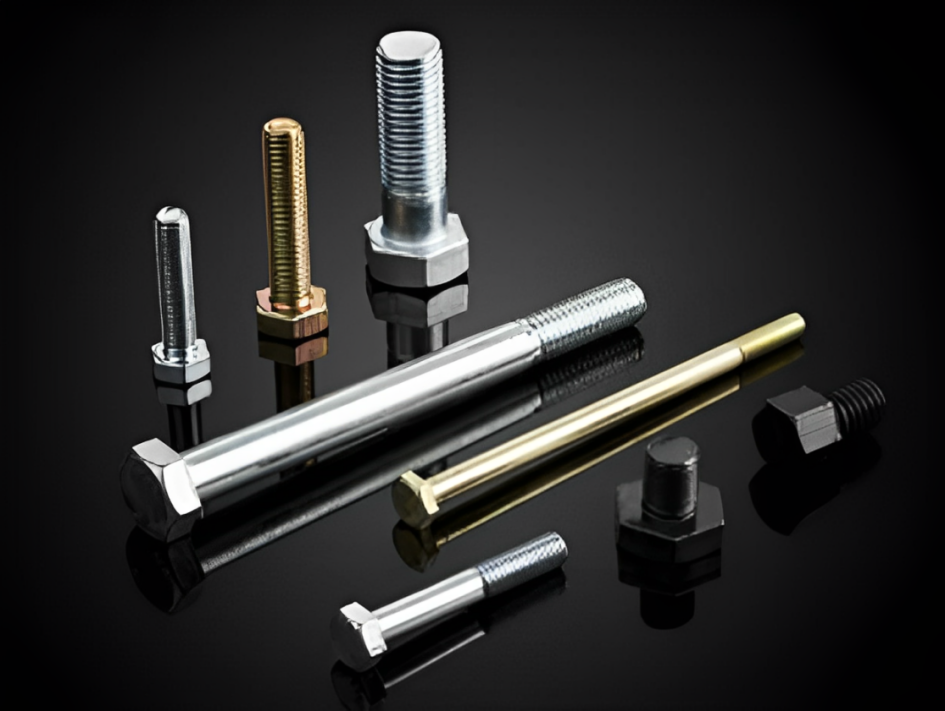

Surface treatments protect the bolt against the effects of the environment and affect appearance and torque behavior:
Here we use a zinc coating by an electroplating process that is economical. The coating offers modest protection against corrosion. Besides this, it offers a sacrificial layer that will corrode, rather than the steel beneath it. It is commonly used indoors, in electrical panels and light machine applications, where moisture is minimal. It also provides a silver and clean finish and little interference with bolt sizes.

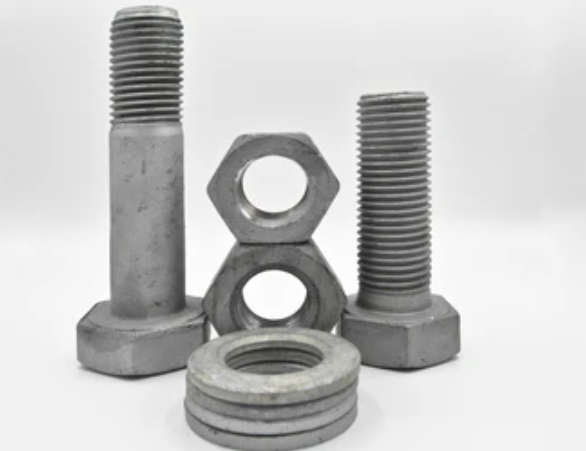

Hot-dip galvanizing refers to the process of coating the bolt with molten zinc, resulting in a protective coating that is thick and tough to crack. The finish has great resistance to corrosion, particularly in outdoor, marine, and high moisture environments. You find it widely in structural steel, bridges, and in construction fasteners and utility infrastructure. The coating is also thicker compared with zinc plating, but it can slightly influence the thread fit that needs to be taken into consideration during design.
It's a kind of chemical conversion coating to turns the steel surface black, giving it a matte black color. Its corrosion resistance is not so high, but it adds beauty, decreases the glare, and offers light oil retention. It is commonly applied indoors, as a mechanical assembly, a tool, or a decorative application where there may be minimal exposure to severe environments.
Electropolishing is a process to finish stainless steel bolts; an electrochemical finish in that a staining-like finish is applied by controlled removal of contaminants and surface defects on the steel surface. It improves corrosion performance at all, including sterile environments, by removing embedded particle debris and forming a passivating oxide morphology. It is broadly consumed in food, medical, pharmaceutical, and semiconductor marketplaces.
Bolts can be coated with a low-friction, non-stick surface known as PTFE (Polytetrafluoroethylene), commonly marketed as Teflon. It also decreases installation torque a lot, and stronger fasteners can be utilized in stainless steel fasteners to avoid galling or thread holdup. PTFE coatings are highly resistant to all chemicals as well, but find use in aerospace, chemical processing, and high-performance automobiles.
The bolt is also heat-treated to increase its hardness, tensile strength, and fatigue resistance. Common processes are:
● Quenching & Tempering - This is the most popular process of bolts fortification. It can increase tensile strength up to grade 800 MPa to 1200 MPa (8.8, 10.9, or 12.9).
● Case Hardening - It is employed in wear surfaces and to preserve the core ductility.
● Solution Annealing - Resurfaces the strain of corrosion resistance on stainless steels by solubilizing carbides.
Using heating and cooling cycles, manufacturers need to be exact when controlling those, so they can have uniform mechanical performance within different batches.
The capabilities and quality provided by manufacturers are not the same. That is what to watch:
1. Certifications - ISO 9001, AS9100, IATF 16949, based on your industry.
2. In-House CapChecks- CNC machining, heat treatment, and plating capability.
3. Custom Engineering - Capacity to engineer and manufacture special-purpose bolts to close tolerances.
4. Small & Large Batch support - Prototype to bulk.
5. Logistics and Global Reach - An ability to deliver reliably and to source on a scale.
The collaboration with a well-reputed bolt fastener manufacturer can be a solution to iron out consistency and mitigate intrinsic risk in the supply chain.
It has been established for more than 13 years, and Maijin Metal is an outstanding bolt fastener production company with considerable experience in CNC and fastening manufacturing. That is what makes them reliable all over the world:
● Custom Bolt Manufacturing - Produces flange bolts, shoulder bolts, and hex bolts, among others, without the need to use molds.
● Material Adaptability - Titanium, stainless steel, Inconel, brass, a nd alloy steels.
● High Quality Controls - ISO certified and extensive examination and test performance.
● Prototyping to Mass Production - A Perfect Solution whenever an engineer requires minute manufacturing or bulk procurement.
● Global Reach - Being based in China, they can cater to their clients globally with competitive prices.
Maijin focuses on precision, speed, and innovation, particularly when it comes to such industries as automotive, electronics, and aerospace.
The technology and the market demands are changing the way Bolt manufacturing is done:
● Smart Manufacturing - Predictive quality control that utilizes AI, sensors, and IoT.
● Environment-Friendly Coatings- Zinc-nickel and chrome-free finishes result in fewer impacts on the environment.
● Lightweighting - Heavier bolts that are lighter in weight, particularly in EVs and aircraft.
● Hybrid Manufacturing - Where 3D printing and conventional machining are used together to produce hybrid bolt shapes.
● Digital Twin Technology-This allows for virtually testing things before the actual manufacturing starts.
The major manufacturers, such as Maijin, are already incorporating most of these improvements in order to keep pace with market demands.
Bolt fasteners are just simple things; however, their quality can either make or break an assembly. Selection of material, tolerances, heat treatments, and coatings is necessary to achieve performance and safety. It is important to ensure that you seek the assistance of experienced bolt fastener manufacturers such as Maijin Metal because when you do so, you are bound to receive the bolts that are subject to high industry standards, despite the toughness of the application at hand.
When you need to buy precision bolts to use in the aerospace industry or durable construction supplies, start with the beginning-quality, because no project can be trusted to be strong as the weakest bolts used.
Q1: How are 8.8 and 12.9 bolts different?
Grade 8.8 bolts are resistant to a pull of ~ 800 MPa, whereas 12.9 bolts are subjected to a pull of ~ 1,200 MPa, making them perfect in high-stress areas.
Q2: Is it possible to order a small quantity of custom bolts?
Yes, factories such as Maijin have low MOQ production and do not need costly molds.
Q3: Cut or rolled, are bolt threads made?
Thread rolling on most high-strength bolts is available and makes the threads harder and better in fatigue life.
Q4: How long do marine coatings survive?
Stainless steel bolts with passivation or hot-dip galvanizing are the most suitable in corrosive environments or saltwater.
Q5: Are bolt fasteners all standardised?
No, there are a lot of industries that demand non-standard sizes, materials, or the geometry of bolts, which is why there is a custom manufacturing of bolts.
